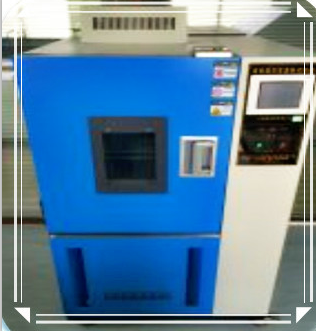

高低温交变湿热试验箱操作规程
一.开机步骤：

1.将配电柜电源打开。
2.打开冷却塔电源及供水开关。（如果是风冷则不需此步骤）

3.将试验箱的“总电源”开关合上。
4.按下机器正面面板上的“电源开关”，控制系统将通电。

 二.注意事项
1.在操作当中，除非有绝对必要，请不要打开箱门，

   否则可能导致下列不良的后果： ·高温气流冲出箱外，造成烫伤。 ·高温空气可能触发火灾报警，产生误动作。 ·箱门内侧仍然保持高温，造成烫伤。
2.试验箱在安装时箱体外壳必须接地，如果试验箱没有接地，一旦漏电则会非常危险。

3.避免15分钟内关闭再开启冷冻机。
4.如果箱内放置发热试品时，试品电源控制请使用外加电源，不要直接使用本机电源。放入高温试料作低温试验时应注意：开启箱门时间要尽可能的短。
5.电路断路器和超温保护器是提供本机测试品以及操作者的安全保护，需要定期检查。

6.绝对禁止试验**性，可燃性及高腐蚀性物质。

7.照明灯除必要时打开外，其余时间应关闭。

8.在做低温前，应将工作室檫干。
9.在垂直于主导风向的任何截面上，试验负载截面面积之和不应大于该处工作截面的三分之一。
10.本试验箱在刚开始一周内做高温时有烟雾及异味排除均属正常现象，因为试验箱在制造时，使用的钢板上面有润滑油，所以新的试验箱在刚开始使用高温时会产生油烟被烤产生的异味。
11.试验结束后不要立刻打开工作室大门，以免遭受热气流对操作人员的冲击。如必须马上取出试验样品，必须佩带隔热手套，以免烫伤。
12.所有试样应均匀放置，试验的放置应保证工作室有效空间内。
13.在插、拔试验箱与计算机的通讯接口连接线时，必须先关闭计算机电源决不允许带电插拔。带电插拔有可能造成仪表通讯口或电脑通讯口损坏。

14.试验工作结束，不用试验箱时，务必管带总电源开关。
15.如试验箱不配备加湿功能，阅读说明书时注意区别使用和要求上的不同。
16.本系列产品制冷方式为风冷，为单机和双机，其说明书为风冷，单、双机通用型。阅读说明书时注意区别使用和要求上的不同。
17.说明书中的“R404A”是指制冷系统中的“高温级”，“R23”是指制冷系统中的“低温级”，使用的制冷剂分别是“R404A”和“R23”。
18.具有照明功能的试验箱，照明灯不宜常亮。部分高温箱由于试验温度在150度以上，所以不安装照明灯，面板上的开关没用。

Alternating high and low temperature heat test box operation procedures
A boot steps:
1 will be the main power distribution cabinet open.
2 open cooling tower and water supply switch power supply. (if it is cooled need not be this step)
3 the test box "total power" on switch.
4 press the machine on the front panel of the "power switch", the electricity control system.
Note two.
1 in the operation of them, unless absolutely necessary, do not open the door,
Or may cause the following undesirable consequences: heat the air out of the tank, causing scald. High temperature air can trigger the fire alarm, malfunction. - box inside the door remains high, scald.
2 test box must enclosure in the installation of grounding, if the test box is not grounded, once the leakage is very dangerous.
3 avoid close and open the freezer 15 minutes.
4 if the box when you place the heating test items, test items of power control use the external power supply, do not directly use the power of this machine. Into the high-temperature materials for low temperature test should pay attention to: open the door of time should be as short as possible.
The 5 circuit breaker and over temperature protection device is provided in this machine test products and operator safety protection, need to be checked regularly.
6 absolute test ban * *, flammable and highly corrosive substances.
7 lightcept when necessary to open, the rest of the time should be closed.
8 in the low temperature should be dry before, studio.
9 at any cross section perpendicular to the prevailing wind direction, the test load and the cross-sectional area of the cross section of the work should not be greater than 1/3.
10 this test box at the beginning of a week do when high temperature smoke and odor elimination is a normal phenomenon, because the test box at the time of manufacture, the use of steel plate above the lubricating oil, so the new test box used in the beginning, when the high temperature will produce peculiar smell fumes were roasted generated.
Don't immediately opened the studio door 11 after the test, so as not to suffer the hot gas flow on the impact of operating personnel. If must immediately remove the test samples, must wear insulated gloves, so as not to burn.
12 of all samples should be evenly placed, test placed should ensure effective space studio.
The 13 connection line in the insert and pull out test box and computer communication interface, you must first turn off the computer power will not allow electric plug. Live insertion may cause instrument communication port or computer communication port damage.
14 experimental work is finished, no test box, be sure to pipe with a general power switch.
15 if the test box is equipped with humidifying function, read the manual attention to the distinction between use and requirements of different.
16 this product series for air-cooled refrigeration mode, for single and double, the specification for air-cooled, single, double universal. Read the manual attention to the distinction between use and requirements of different.
17 instructions in the "R404A" refers to the "high temperature level refrigeration system", "R23" refers to the "low temperature refrigeration system using refrigerant level", are "R404A" and "R23".
Test case 18 with lighting function, not often bright lights. Part of the high temperature test box because the temperature above 150 degrees, so do not install lights, the switch on the panel of no use.
