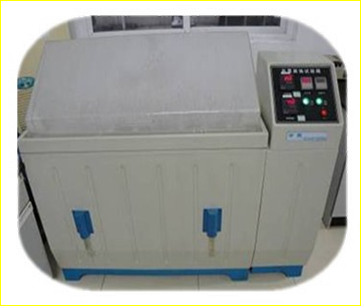

盐雾试验箱
盐雾试验箱参数要求
盐雾试验标准:将试验样品置入盐雾施压设备中,试验箱温度35±2°,湿度95%R.H。连续喷雾8H后,停止加热、加温、喷雾,产品在箱内放置16h,每24h为一周期,可连续循环4个周期。试验后用净、温度低于38度水或热水清洗,然后用大约250Kpa压力的压缩空气吹干。试验中盐水不得进入壳内(经咨询,江淮没有用250Kpa压力的压缩空气吹干,只放在室内吹干)。
盐雾试验箱建议参数要求:
1.温度范围:10-55°
2.实验仪器喷盐雾,一般不对湿度做要求。
3.温度波动度≤±1.0°(空载时)
4.温度均匀度≤±2.0°(空载时)
5.盐雾沉降量:1-2毫升。
6.500×600×450(以4×SL0602系列为标准,若公司未来产品尺寸会**,可适量放大尺寸)
Requirements of salt fog test box parameters
Salt spray test standard: the test sample in the salt fog test box pressure device, a temperature of 35 plus or minus 2 degrees, humidity 95%R.H. Continuous spray 8H, stop heating, heating, spray, the product is placed in the box of 16h, each 24h for the cycle, continuous cycle for 4 cycles. After the test, the temperature is lower than the net 38 water or hot water washing, and then use about 250Kpa pressure of compressed air dryer. Test saline shall enter the shell (after consultation, Jianghuai not by 250Kpa pressure of compressed air dryer, just put in indoor dry).
Suggested parameters of salt fog test box:
The temperature range of 10-55 DEG: 1
2 experimental instrument, salt fog, general humidity requirements.
3 temperature fluctuation is less than or equal to - 1 degrees (no load)
4 temperature uniformity is less than or equal to - 2 degrees (no load)
5 salt spray deposition: 1-2 ml.
6.500 x 600 x 450 (4 x SL0602 series standards, if the company's future product size can be * *, may be appropriate to enlarge size)
